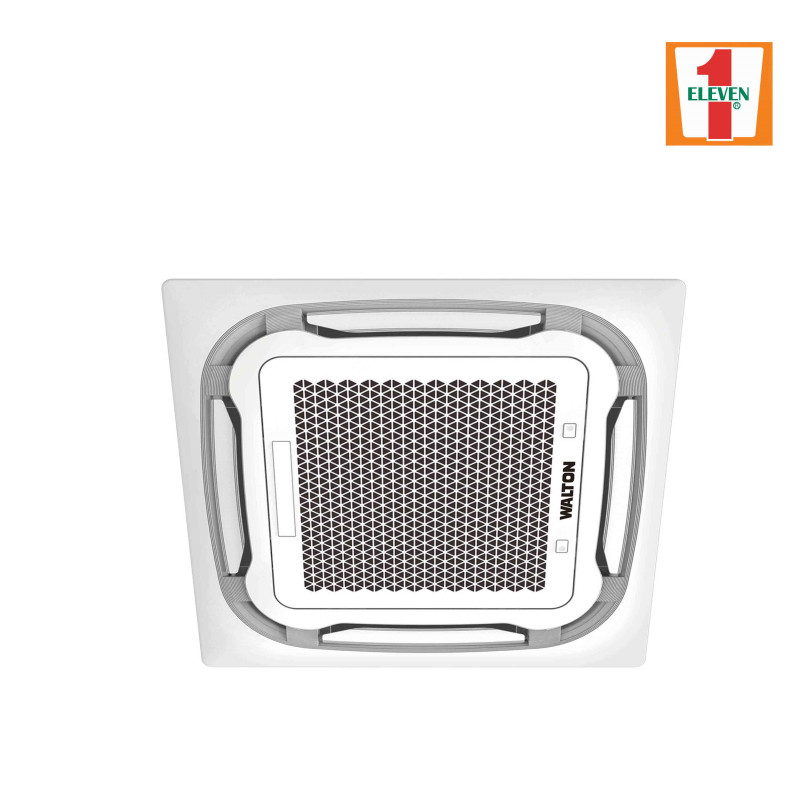

Walton Cassette / Ceiling - WCN-60K-RXXXE Description
Basic Features
- Function Cooling
- BTU/hr 60000
- Rated Voltage 380V-420V ~ 50Hz
- Rated Input Power (W) 5450
- Rated Current (A) 9.66
- Cooling Capacity (W) 17584
- COP 3.22
Cooling Features
- Compressor Type: Scroll (Fixed Speed)
- Refrigerant Type R-410a
- Refrigerant Amount (Kg) 2.9
- Operating Range (Ambient Temperature) 18˚C to 43˚C
- Condenser Type Copper Tube Condenser
- Indoor Fin Type Slit Fin
- Outdoor Fin Type Slit Fin
- Maximum Pipe Length 30m
Operations
- Turbo Mode (Faster Cooling) No
- Turbo Mode (Maximum Cooling) No
- ECO Mode (Power Saving) No
- Dry Mode Yes
- Fan Mood Yes
- Auto Operation Yes
- Auto Restart Yes
- Comfort Cooling Yes
- Speed Setting Yes (Auto, High, Medium, Low)
- Timer Yes
- Sleep Yes
Remote & Air Deflection
- Display Type: LCD
- Display Back Light Yes
- Operation/Control Via IR (Infrared Ray)
- Child Lock No
- Temperature Unit Change Yes (Degree Celsius to Fahrenheit)
- Auto UP-Down Swing Yes
- Auto Left-Right Swing No
Dimensions & Weights
- Indoor Dimensions (mm) [L×W×H]
- Unit- 975 x 975 x 305
- Packing- 1040 x 1040 x 315
- Outdoor Dimensions (mm) [L×W×H]
- Unit- 917 x 330 x 1260
- Packing- 1030 x 400 x 1290
- Net Weight (Indoor) (Kg) 41 ± 1
- Gross Weight (Indoor) (Kg) 47 ± 1
- Net Weight (Outdoor) (Kg) 103 ± 1
- Gross Weight (outdoor) (Kg) 115 ± 1
- Net Weight (Indoor Front Panel) (Kg): 6.00 ±0.25
- Gross Weight (Indoor Front Panel) (Kg): 8.00 ±0.25
- Front panel Unit Dimension (mm) [LxWxH]: 1140 x 1140 x 75
Warranty Information
For Commercial Usage
- Compressor Warranty: 5 Years
- Spare Parts Support: 2 Years
- After Sales Service: 1 Year (Free)
